Blister Packaging Machines for Pharmaceutical Manufacturing
Accupack designs and manufactures blister packing machines for pharmaceutical and medical packaging applications. Our machines are engineered for consistent output, precise sealing, and long-term reliability in high-volume production environments.
Blister Machines & Comparison
Machine Name Velocity V300 Discovery Trinity Victory Format Area- Width x Length (mm) 90 x 226 200 x 222 125 X 252 180 x 252 Punching Cycles/min 150 150 120 200 Web Speed (m/min) 7.5 7.5 5 9 Machine Dimensions- Length x Width x Height (mm) 2600 x 960 x 2140 3150 x 960 x 2140 4000 x 1000x 2170 4700 x 1000 x 2170

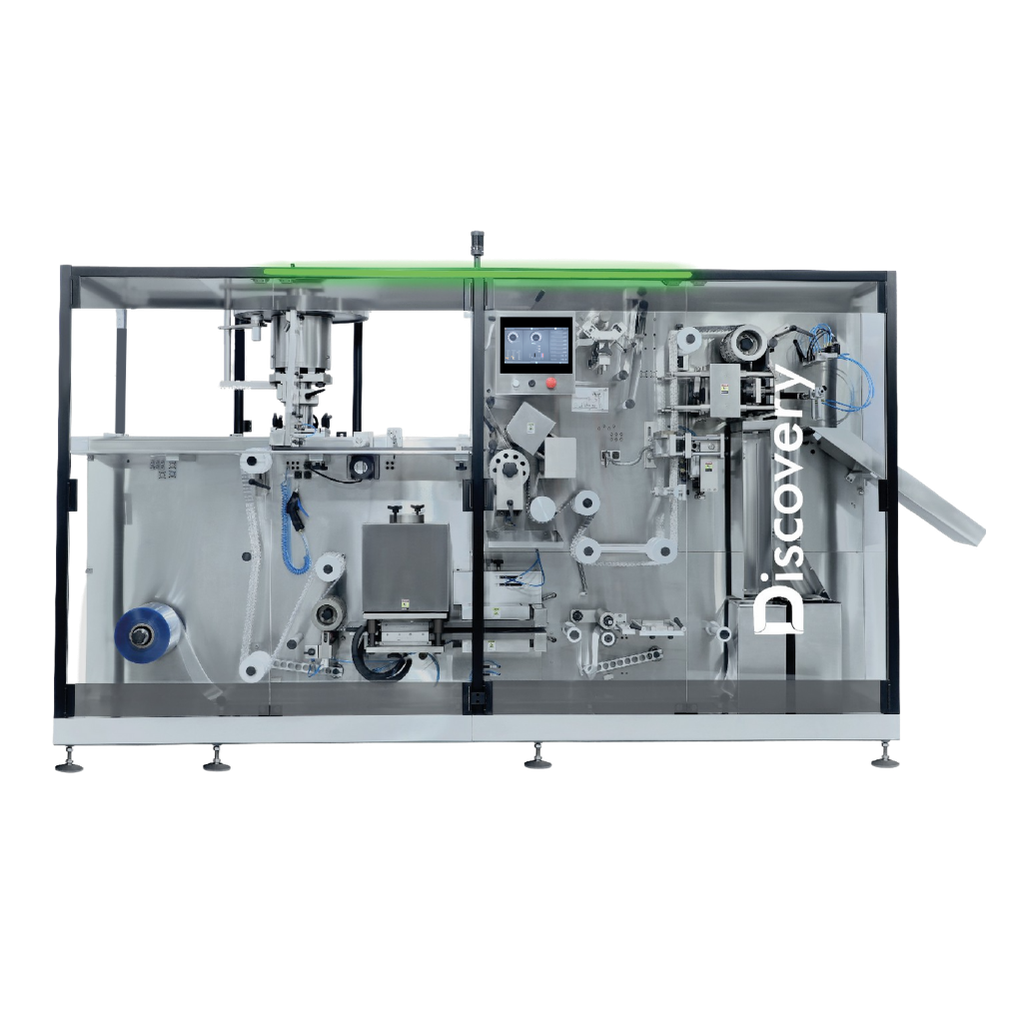

Discovery
Discovery is an automatic, double-lane blister packing machine with servo-driven motion control and a maximum output of 300 blisters per minute. The electronically synchronized drives ensure accurate forming, sealing, and cutting in continuous production.
Output (Max): 300 Blisters/min
Sealing Principle: Roller Sealing
Blister Length: 222 mm
Blister Width: 90 mm
Victory
Victory is a double-lane, servo-driven blister packing machine engineered for sustained high-speed production.
With output up to 400 blisters per minute, tool-less changeovers, and remote serviceability, Victory delivers maximum throughput with minimum operational friction.
Output (Max): 400 Blisters/min
Sealing Principle: Platen Sealing
Blister Length (Max): 252 mm (248mm for ALU ALU)
Blister Width: 90 mm (110mm without Conveyor)

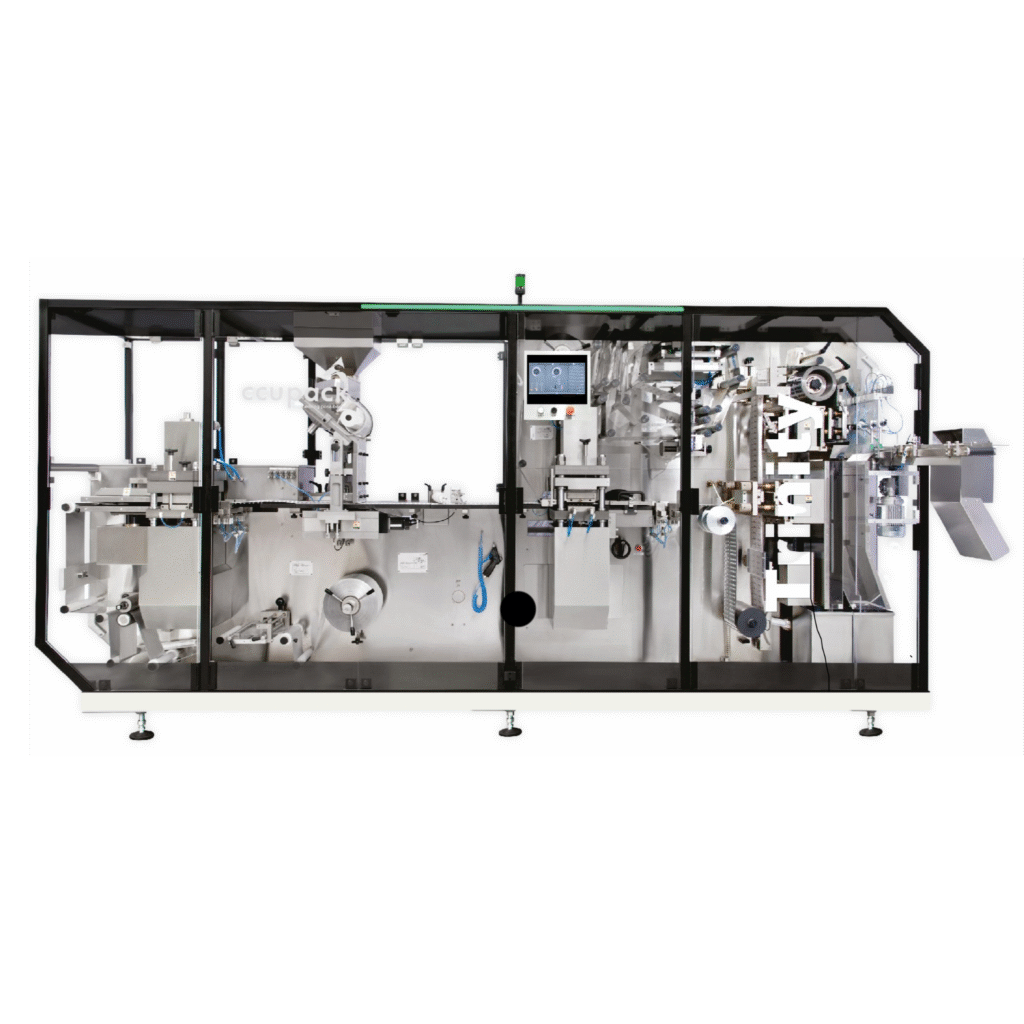

Trinity
Trinity is a double-lane, servo-driven blister packing machine engineered for flexible production environments.
With output up to 240 blisters per minute and quick, tool-less changeovers, Trinity is ideal for manufacturers running multiple SKUs with frequent format changes.
Output (Max): 240 Blisters/min
Sealing Principle: Platen Sealing
Blister Length (Max): 252 mm (248mm for ALU ALU)
Blister Width: 90 mm

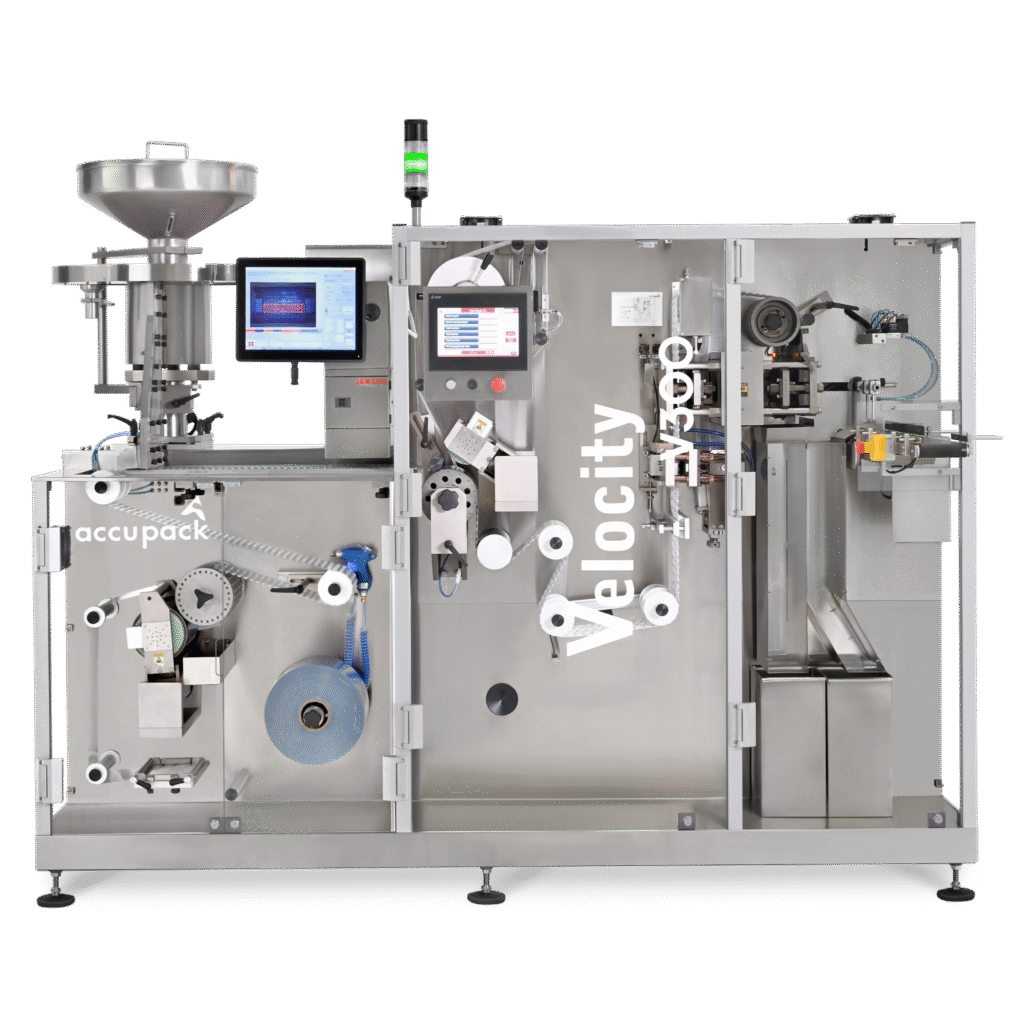

Velocity V300
Velocity V300 is a double-lane, servo-driven blister packing machine designed for high productivity in space-constrained environments.
With output up to 300 blisters per minute, roller sealing technology, and reduced energy consumption, V300 delivers efficient continuous production with low operating cost.
Output (Max): 300 Blisters/min
Sealing Principle: Roller Sealing
Blister Length (Max): 222 mm
Blister Width: 90 mm (110mm without Conveyor)
