Blister Packaging Machines for Pharmaceutical Manufacturing
Accupack designs and manufactures blister packing machines for pharmaceutical and medical packaging applications. Our machines are engineered for consistent output, precise sealing, and long-term reliability in high-volume production environments.
Blister Machines & Comparison
Machine Name Velocity V300 Discovery Trinity Victory Format Area- Width x Length (mm) 90 x 226 200 x 222 125 X 252 180 x 252 Punching Cycles/min 150 150 120 200 Web Speed (m/min) 7.5 7.5 5 9 Machine Dimensions- Length x Width x Height (mm) 2600 x 960 x 2140 3150 x 960 x 2140 4000 x 1000x 2170 4700 x 1000 x 2170

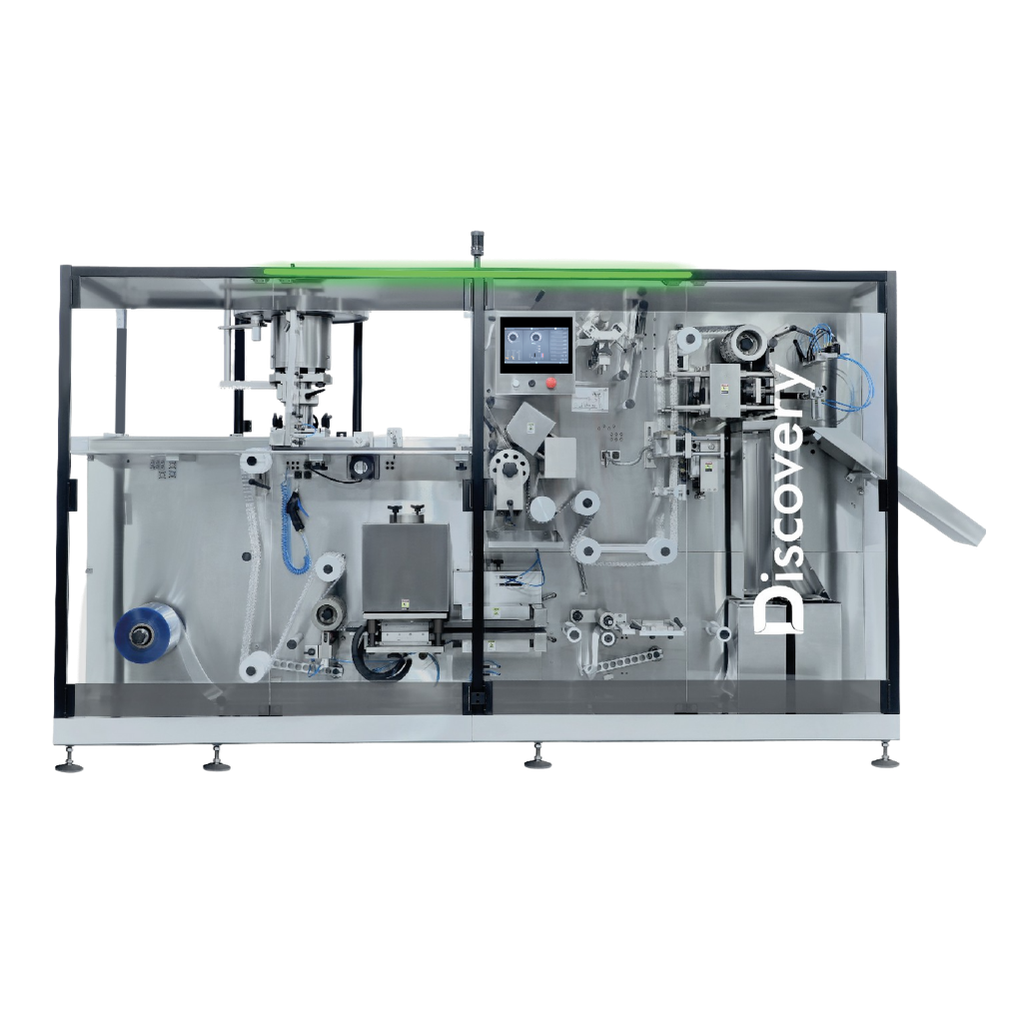

Discovery
Discovery is an automatic, double-lane blister packing machine with servo-driven motion control and a maximum output of 300 blisters per minute. The electronically synchronized drives ensure accurate forming, sealing, and cutting in continuous production.
Output (Max): 300 Blisters/min
Sealing Principle: Roller Sealing
Blister Length: 222 mm
Blister Width: 90 mm
Victory
Victory is a double-lane, servo-driven blister packing machine engineered for sustained high-speed production.
With output up to 400 blisters per minute, tool-less changeovers, and remote serviceability, Victory delivers maximum throughput with minimum operational friction.
Output (Max): 400 Blisters/min
Sealing Principle: Platen Sealing
Blister Length (Max): 252 mm (248mm for ALU ALU)
Blister Width: 90 mm (110mm without Conveyor)

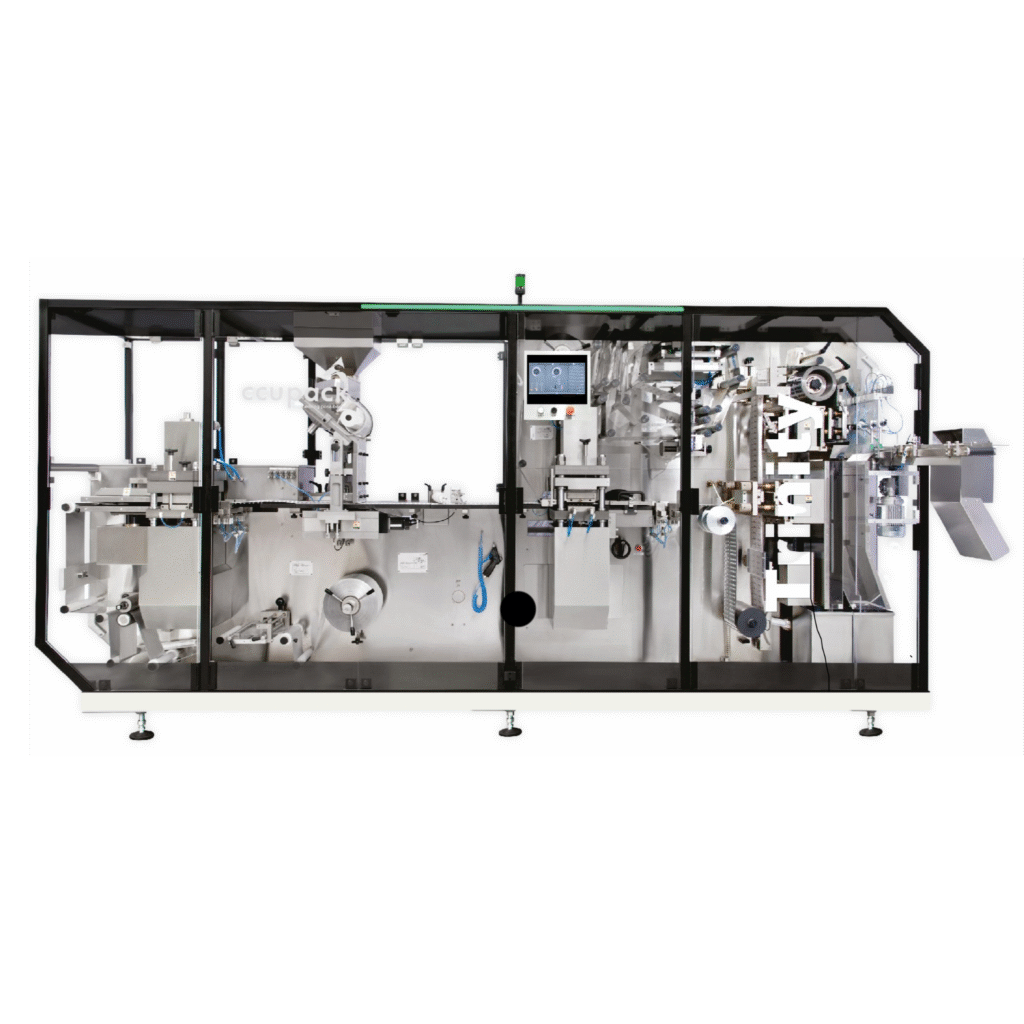

Trinity
Trinity is a double-lane, servo-driven blister packing machine engineered for flexible production environments.
With output up to 240 blisters per minute and quick, tool-less changeovers, Trinity is ideal for manufacturers running multiple SKUs with frequent format changes.
Output (Max): 240 Blisters/min
Sealing Principle: Platen Sealing
Blister Length (Max): 252 mm (248mm for ALU ALU)
Blister Width: 90 mm

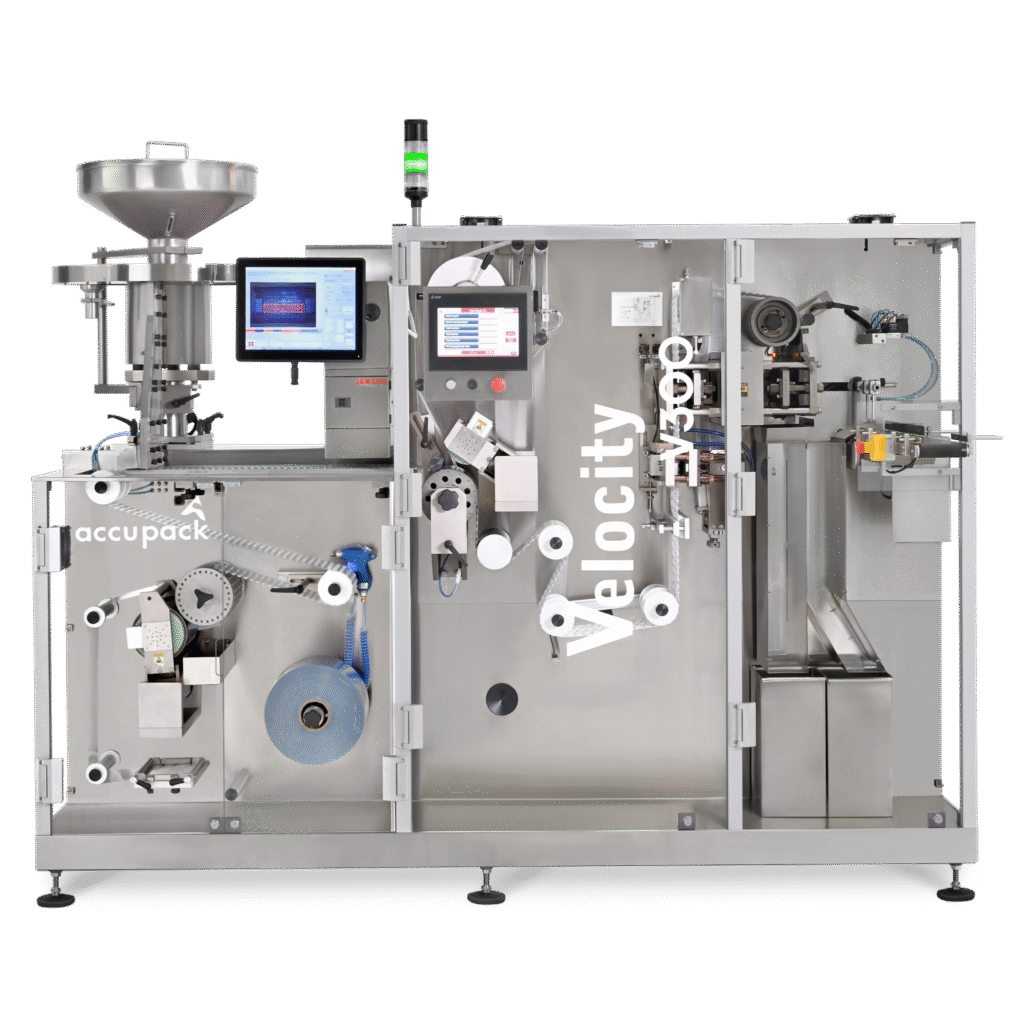

Velocity V300
Velocity V300 is a double-lane, servo-driven blister packing machine designed for high productivity in space-constrained environments.
With output up to 300 blisters per minute, roller sealing technology, and reduced energy consumption, V300 delivers efficient continuous production with low operating cost.
Output (Max): 300 Blisters/min
Sealing Principle: Roller Sealing
Blister Length (Max): 222 mm
Blister Width: 90 mm (110mm without Conveyor)
Get Expert Advice to Select the Right Blister Machine
Blister Packing Machines for Pharmaceutical Packaging
Our automatic blister packing machines are designed for reliable and high-speed pharmaceutical packaging of tablets, capsules, and medical products. In today’s regulated environment, manufacturers require systems that deliver both precision and consistency. Therefore, we develop advanced alu alu blister packing machines and blister packaging solutions that meet strict quality standards.
Moreover, with strong expertise in pharmaceutical blister packaging and medical blister packaging, we provide complete blister packaging lines that support stable production. In addition, our solutions include blister forming machines, blister filling machines, and blister sealing machines for end-to-end automation.
Furthermore, every automatic blister machine is engineered to ensure accurate forming, secure sealing, and minimal material wastage. As a result, manufacturers experience reduced rejection rates and improved packaging efficiency.
Meanwhile, our range covers alu blister machines, alu alu packing machines, and automatic blister sealing machines for diverse production requirements. Likewise, our systems are designed for easy maintenance, fast changeovers, and long operational life.
Whether you plan to buy a blister packaging machine or upgrade your existing pharmaceutical packaging line, our team delivers practical and cost-effective solutions. Consequently, customers benefit from faster installation and smoother production workflows.
Finally, from standalone blister machines to fully integrated blister packaging lines with cartoning support, we help pharmaceutical companies achieve higher output, stronger compliance, and better return on investment.
