Cartoning Machines for Pharmaceutical Manufacturing
Accupack designs and manufactures cartoning machines for pharmaceutical and medical packaging applications. Our cartoners are engineered for accurate carton erection, smooth product insertion, and secure sealing, ensuring consistent performance and long-term reliability in high-speed, high-volume production environments.
Cartoning Machines & Comparison
Machine Name Galaxy Nx Galaxy 130 Galaxy 200 Output(Max)
Cartons / Minute.80 130 200 Mode Of Operation Intermittent Motion Intermittent Motion Continuous Carton Width -A
– (Min/Max)30 – 115 mm 15 – 95 mm 30 – 90 mm Carton Height –B
– (Min/Max)15 – 90 mm 15 – 70 mm 15 – 90 mm Carton Length –C
– (Min/Max)70 – 225 mm 70 – 160 mm 70 – 180 mm Types Of Closure Tuck – in, hot melt Tuck – in, hot melt Tuck – in, hot melt

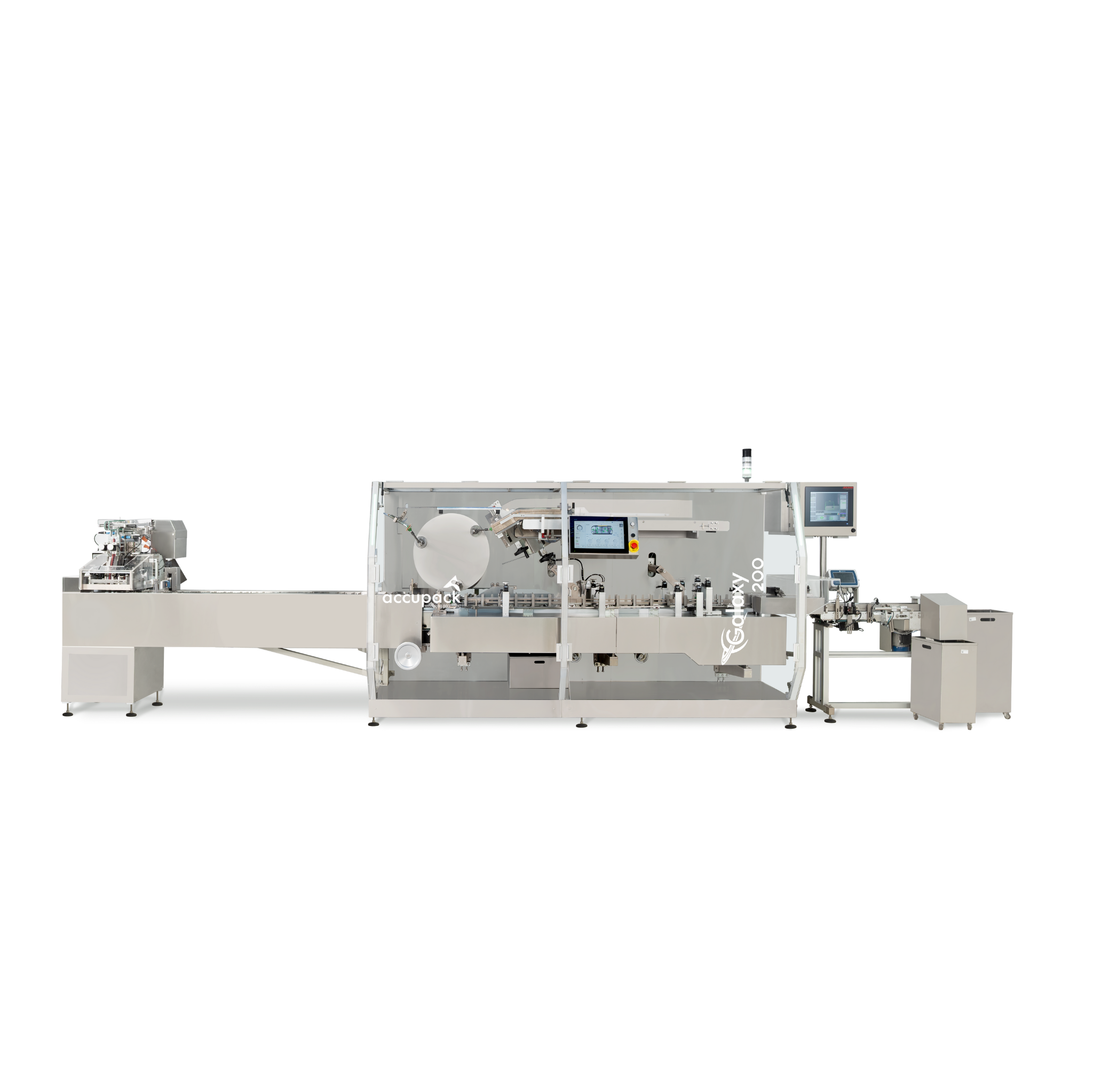

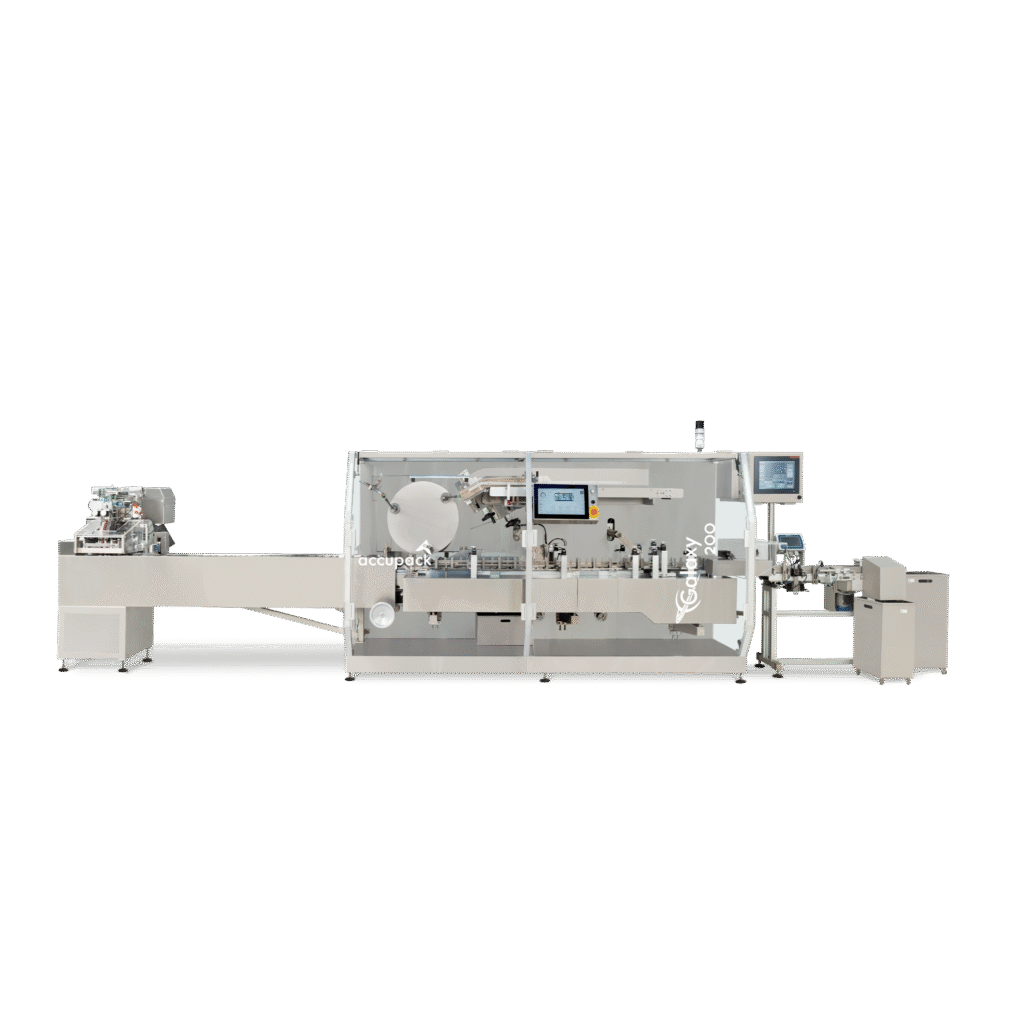

Galaxy 200
Galaxy 200 is a high-speed continuous motion cartoner engineered for large-scale pharmaceutical production. Built for demanding environments, it combines speed, precision, and long-term reliability with advanced automation and operator comfort.
Output: Up to 200 cartons/min
Mode of Operation: Continuous motion
Applications: Blisters, bottles, tubes, vials, trays, ampoules
Blister Dispensing Speed: Up to 390 blisters/min
Carton Size Range:
- Width (A): 30 – 90 mm
- Height (B): 15 – 90 mm
- Length (C): 70 – 180 mm
Types of Closure: Tuck-in, hot-melt
Machine Weight: Approx. 4000 kg

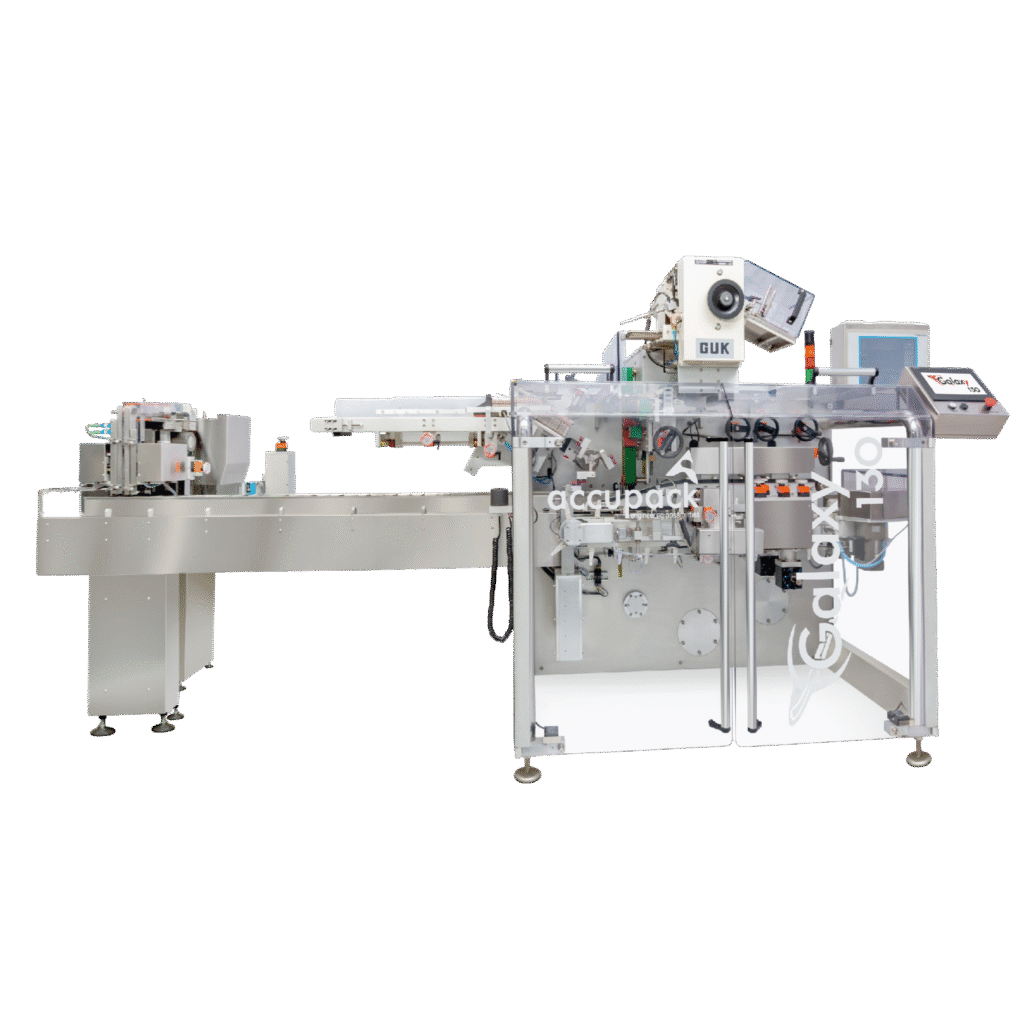

Galaxy 130
Galaxy 130 is a robust intermittent motion cartoning machine designed for higher outputs while maintaining flexibility and precision. It is well-suited for pharmaceutical production lines that demand consistent performance, fast changeovers, and reliable carton handling.
Output: Up to 130 cartons/min
Mode of Operation: Intermittent motion
Applications: Blisters, bottles, tubes, vials, trays, ampoules
Carton Size Range:
Width (A): 30 – 90 mm
Height (B): 15 – 90 mm
Length (C): 70 – 180 mm
Types of Closure: Tuck-in, hot-melt
Design Focus: Reliability, operator safety, and ease of maintenance

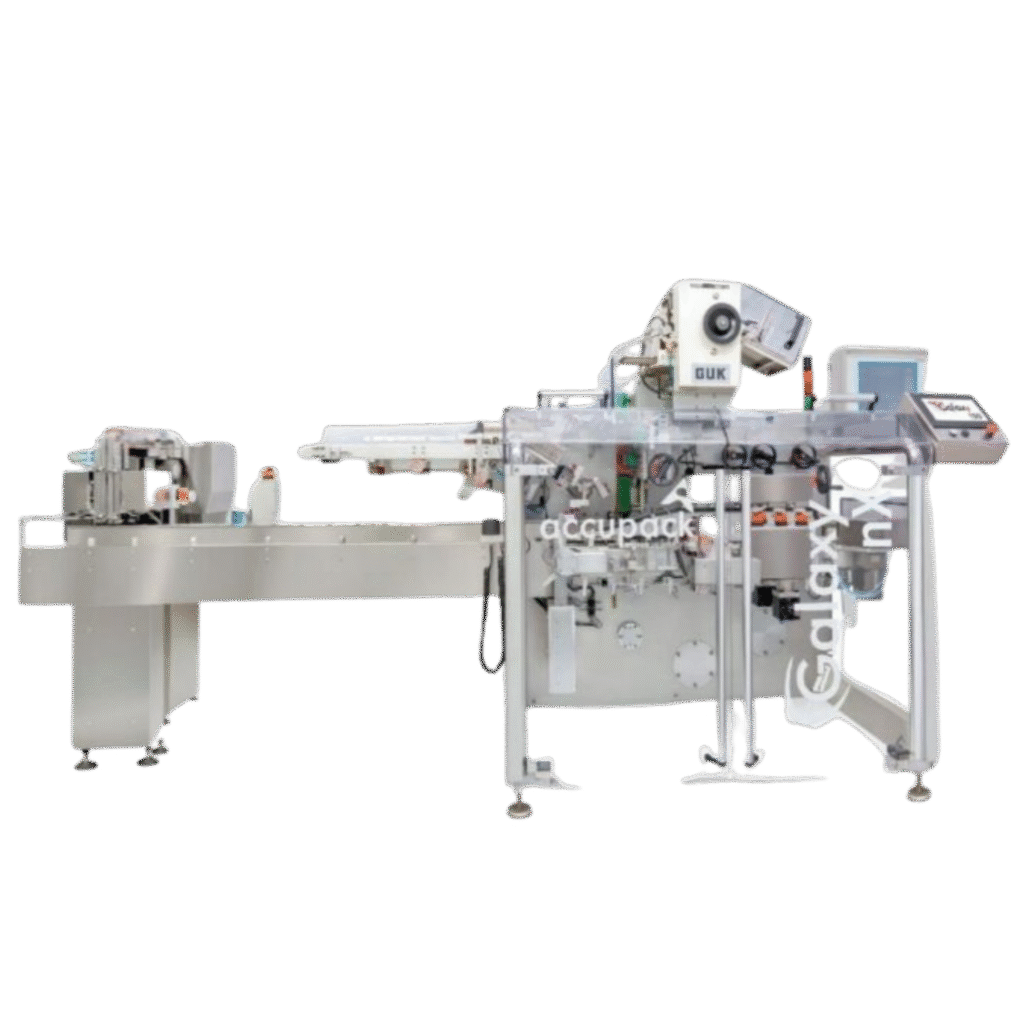

Galaxy Nx
Galaxy Nx is a compact and cost-effective intermittent motion cartoning machine, ideal for small to medium batch production. It is designed for maximum flexibility, quick changeovers, and ease of operation, making it an excellent choice for growing pharmaceutical and nutraceutical manufacturers.
Output: Up to 80 cartons/min
Mode of Operation: Intermittent motion
Applications: Blisters, bottles, tubes, vials, trays, ampoules
Blister Dispensing Speed: Up to 390 blisters/min
Carton Size Range:
- Width (A): 30 – 115 mm
- Height (B): 15 – 90 mm
- Length (C): 70 – 225 mm
Types of Closure: Tuck-in, hot-melt
Machine Weight: Approx. 1800 kg
Get Expert Advice to Select the Right Blister Machine
